Crushed Stone (1.6t/m³) From 0 up to 2500 tph
Coal (0.8t/m³) From 0 up to 2750 tph

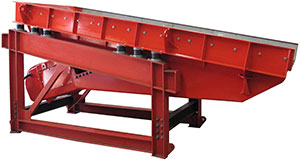

Heavy Duty 33 Hz FV990 Electromagnetic Vibratory Feeder Assembly, Base mounted throughout at 8º decline, with 1800 mm Wide x 4800 mm Long Trough with 304 Stainless Steel 10 mm thick bottom liners and 6 mm side liners. The Feeder is driven by an under-slung Drive Unit suitable for 415 Volts/50 Hz Service. This feeder was designed for ROM Coal with a top size of 1500 x 750 x 100 mm and a density of 900 kg/m3.
You can view a copy of the High Capacity Feeder Brochure here.
